2027 Kia Carnival Trim Levels, Dimensions, Colors & Pricing

Research 2027 Kia Carnival Trim Levels. Compare Specs, Dimensions,
Exterior & Interior Colors, Starting MSRP* Prices and More!

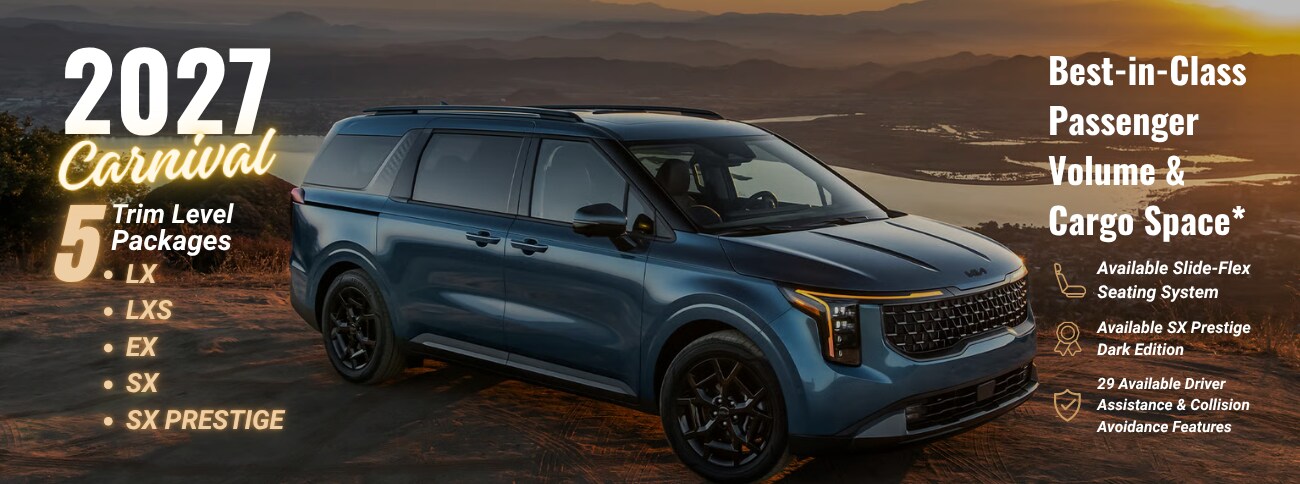

5 AVAILABLE TRIM PACKAGES
2027 Carnival arrives in 5 unique trim levels, including Carnival:
  • LX (Practical everyday adaptability)
  • LXS (Versatile utility)
  • EX (Modern convenience)
  • SX (Advanced technology & styling)
  • SX Prestige (Luxurious w/ top level comfort)
Carnival LX, starting at only $37,490, sets the standard with 7-passenger seating, a 12.3-inch Touchscreen Display with Navigation, and Power Sliding Rear Doors.

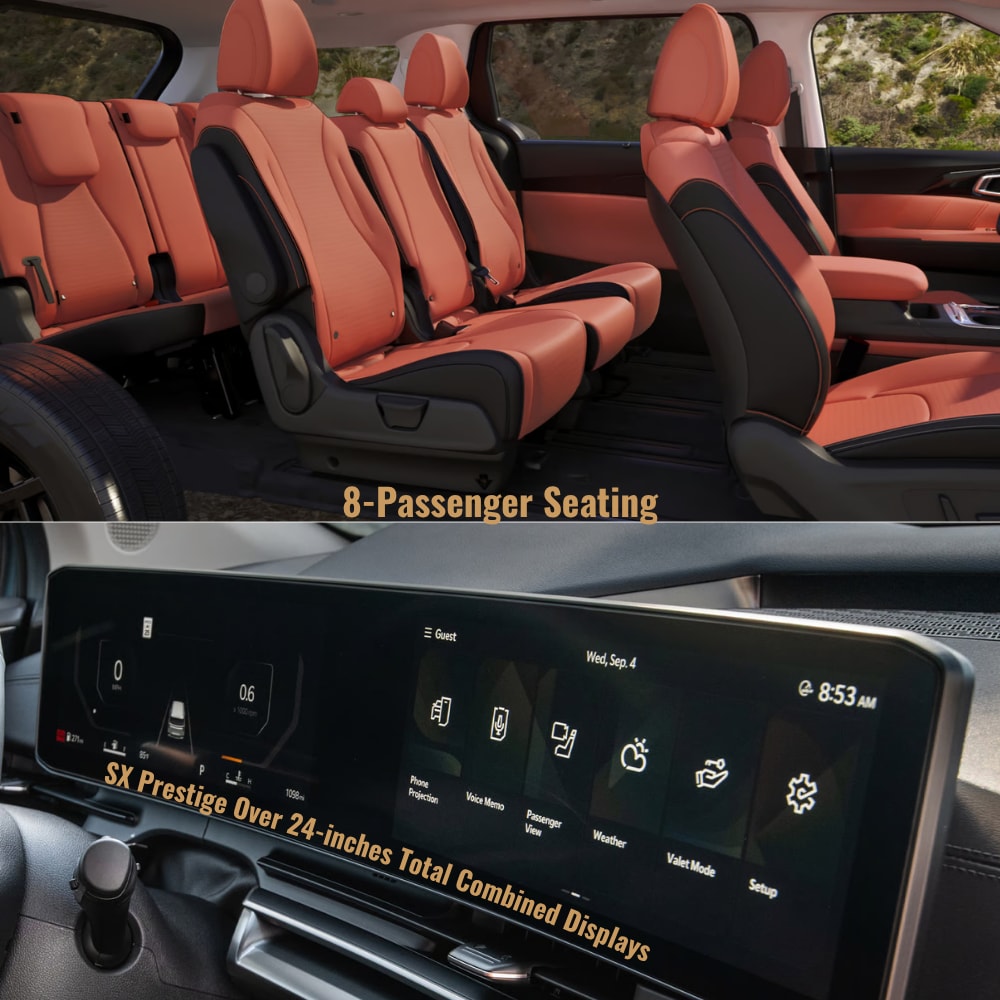

Carnival LXS, just a step above LX, offers 8-passenger seating with 2nd-row Slide-Flex Seating and comfortable SynTex leather interior.

Carnival EX pours on the modern technology with a Smart Power Liftgate, Power Front Seats with Driver Memory, a Passenger-View Camera and 19-inch Wheels.

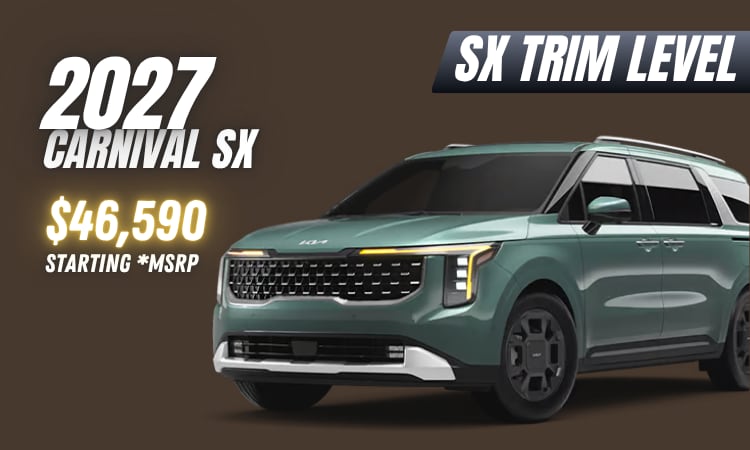

Carnival SX adds modern styling to the technology with Dual Sunroofs, 19-inch Black Wheels, Blind-Spot & 360 Surround-View Monitors and Enhanced Auto-Emergency Braking Technology.

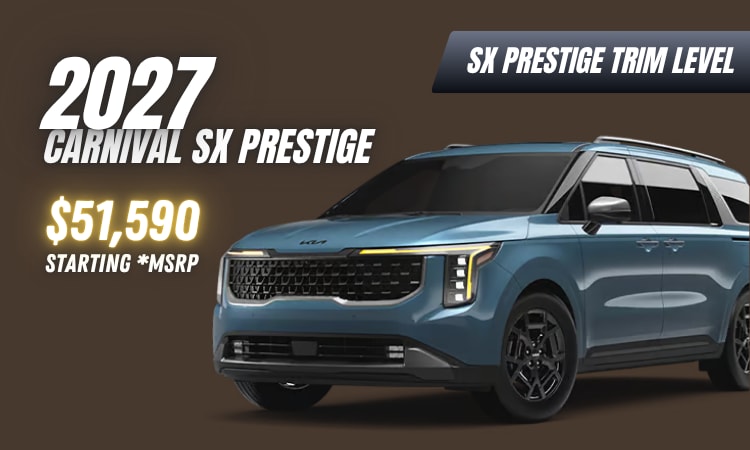

Carnival SX Prestige maximizes comfort, technology and styling with a Bose Premium Audio System, Heads-up Display, Digital Rearview Mirror, LED Projector Headlights and Taillights, and an available Carnival Dark Edition Styling with Leather Seat Trim.
2027 Carnival Technology & Interior Features

Compare the 2027 Kia Carnival Trim Level Packages Below
NOTE: Trim level features in Bold in the "Drop Down" comparison below indicates
"feature or spec. not found or available in lower trim level package(s)"
$37,490 Starting MSRP*
Highlighted Features:
  • 7-Passenger Seating
  • Power Sliding Rear Doors
  • 12.3-inch Touchscreen Display w/ Navigation*
  • 18 Driver & Safety Assistance Features*

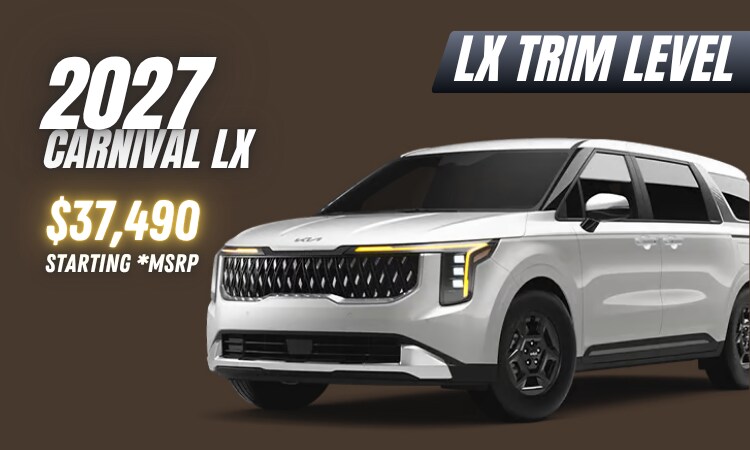

2027 Kia Carnival LX Trim Level

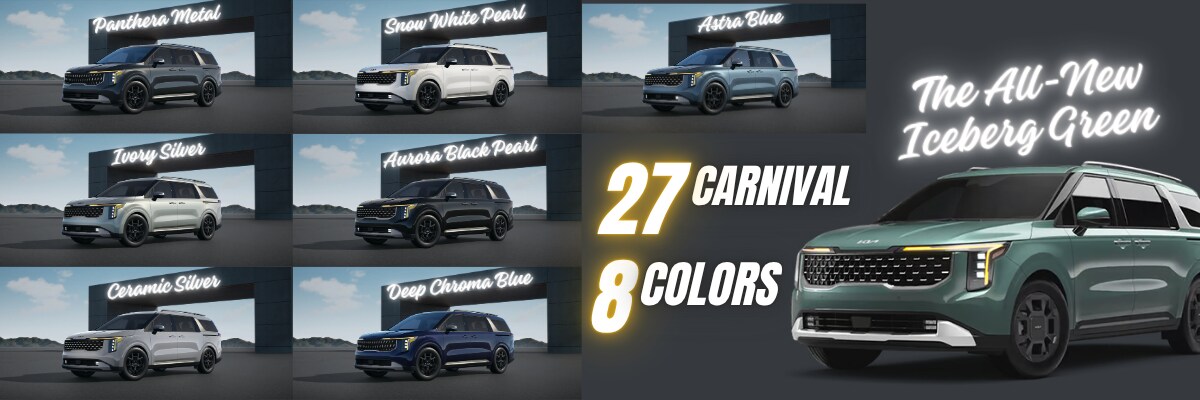

CARNIVAL LX EXTERIOR COLORS:
  • Panthera Metal
  • Ceramic Silver ($495)
  • Snow White Pearl ($495)
  • Deep Chroma Blue
CARNIVAL LX INTERIOR COLORS:
  • Off-Black & Taupe Two-Tone Cloth Seat Trim
EPA MPG Estimates (City/Highway/Combined)*
  • 18/16/21
  • 12.3-inch Touchscreen Display w/ Navigation*
  • 4.2-inch Instrument Display*
  • Over-the-Air System Updates (OTA)*
  • 6-Speaker Audio System
  • Wireless Android Autoâ„¢*
  • Wireless Apple CarPlay®*
  • SiriusXM® Satellite Radio *
  • Remote Start* (available)
  • Kia Connect*
  • Pre-Cooling & Heating through Kia Access App* (available)
  • USB Data Port, Front Console
  • Front USB-C Charging Ports: 2
  • 2nd-row USB-C Charging Ports: 2
  • 3rd-row USB-C Charging Ports: 2
  • 12V Power Ports, Floor Console and Rear Cargo : 2
  • Wi-Fi Hotspot*
  • Schedule Maintenance Reminder through Kia Access App* (available)
  • Bluetooth® Wireless Technology w/ Multi-Device Connectivity*
  • Smart Key
  • Push Button Start
  • Power Windows w/ Driver One-Touch Auto-Up/Down
  • Variable Intermittent Windshield Wipers
  • Rear Windshield Wiper, Hidden
  • Day/Night Rearview Mirror
  • Heated, Power-Adjustable Side View Mirrors w/ LED Turn Signals
  • Voice Recognition*
  • 6-Way Manual Driver's Seat
  • 4-Way Manual Passenger's Seat
  • 2nd-row Captain's Chairs*
  • Sliding & Removable 2nd-row Seats
  • 60/40 Split-Folding 3rd-row Seats*
  • 11 Cup & Bottle Holders
  • Solar Control Glass Front Windshield
  • Sound-Absorbing Windshield Glass
  • Privacy Glass
  • Cloth Seat Trim
  • Leather-Wrapped Gear Shift Knob
  • Leather-Wrapped Steering Wheel
  • Interior Accent Trim, Metal Paint Finish
  • Interior Door Handles, Metal Paint Finish
  • Interior Lighting
  • Illuminated Sun Visor Vanity Mirrors
  • Hands-Free Power Sliding Rear Doors
  • 17-inch Alloy Wheels w/ Black Finish
  • Tire Size: 235/65R17
  • Standard
  • Compact Spare Tire
  • Auto Headlight Control
  • LED Multi Reflector Headlight
  • Taillights
  • LED Daytime Running Lights (DRL)
  • High Beam Assist*
  • Front Grille, Silver Paint
  • Front Bumper Trim, Silver Finish
  • Window Surrounds, Black
  • Side Sill Trim, Black Finish
  • C-Pillar Trim, Silver Finish
  • Liftgate Trim, Silver Finish
  • Door Handles, Half Chrome Finish
  • Side View Mirrors, Body-Color
  • Rear Spoiler
  • Shark Fin Antenna
  • Blind-Spot Collision-Avoidance Assist (Blind-Spot Detection Technology)*
  • Forward Collision-Avoidance Assist (Auto Emergency Braking Technology) w/ Pedestrian, Cyclist, & Junction Turning Detection*
  • Rear Cross-Traffic Collision-Avoidance Assist*
  • Park Distance Warning - Rear (Rear Parking Sensors)*
  • Park Distance Warning - Front (Front Parking Sensors)*
  • Lane Departure Warning*
  • Lane Keeping Assist*
  • Lane Following Assist 2*
  • Navigation-Based Smart Cruise Control w/ Stop & Go *
  • Highway Driving Assist*
  • Intelligent Speed Limit Assist*
  • Driver Attention Warning w/ Leading Vehicle Departure Alert*
  • Hands-On Detection (HOD)
  • Rear Occupant Alert*
  • Safe Exit Assist*

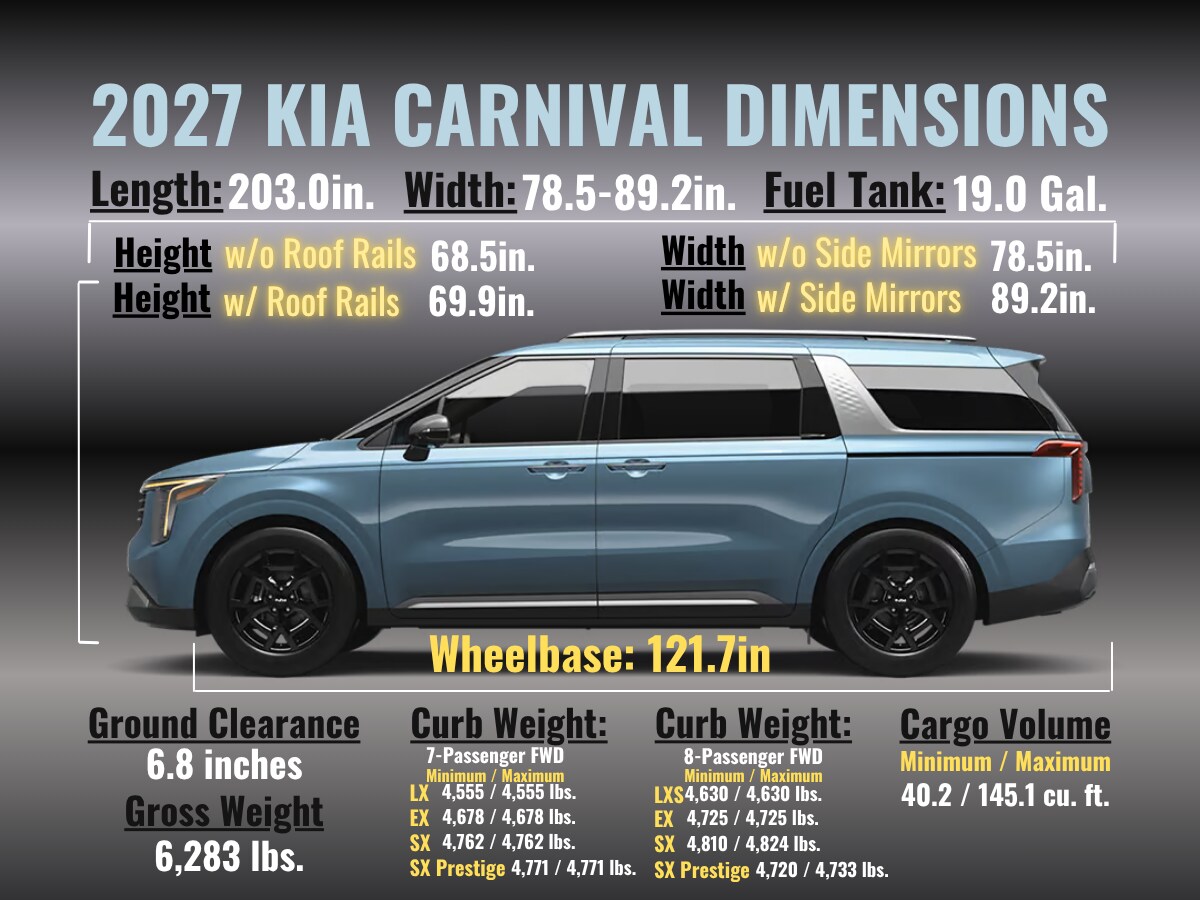

Height: w/o Roof Rails
  • 68.5 in.
Width: w/o Side Mirrors
  • 78.5 in.
Width: w/ Side Mirrors
  • 89.2 in.
Length
  • 203.0 in.
Wheelbase
  • 121.7 in.
Track: Front/Rear - 17-inch Wheels
  • 68.9/68.9 in.
Ground Clearance
  • 6.8 in.
Approach Angle
  • 15.4°
Departure Angle
  • 20.0°
Headroom: w/o Dual Sunroof 1st / 2nd-row / 3rd-row
  • 40.9/39.5/38.6 in.
Shoulder Room: 1st / 2nd-row / 3rd-row
  • 64.2/63.2/59.5 in.
Hip Room: 1st / 2nd-row / 3rd-row
  • 59.8/66.4/50.4 in.
Legroom: 1st / 2nd-row / 3rd-row
  • 41.1/40.5/35.6 in.
Cargo Volume (SAE): Minimum/Maximum
  • 40.2/145.1 cu. ft.
Curb Weight: Front-Wheel Drive (FWD) 7-Passenger minimum/maximum
  • 4,555 lb. / 4,555 lb.
Curb Weight: Front-Wheel Drive (FWD) 8-Passenger minimum/maximum
Not Available
  • 4,630 lb. / 4,630 lb.
Gross Weight
  • 6,283 lb.
Engine Type
  • 3.5 Liter V6
Displacement
  • 3,470 cc
Valve Train
  • Double Overhead Camshafts (DOHC), 4 Valves per cylinder
Compression Ratio
  • 12.3:1
Fuel Delivery System
  • Gasoline Direct Injection (GDI) and Multi-Port Injection (MPI)
Horsepower
  • 287 hp @ 6,400 rpm
Torque
  • 260 lb.-ft. @ 5,000 rpm

  • 8-Speed Auto Transmission
  • Eco Drive Mode

Fuel Requirement
  • Regular Unleaded, 87 Octane or higher
Fuel Tank Capacity
  • 19.0 gal.
Layout
  • Front Engine, Front-Wheel Drive (FWD)
Body Construction
  • Steel Unibody, Iso-Structure
Steering Type
  • Electric, Column-Mounted Motor Driven Power Steering (C-MDPS)
Front Suspension Type
  • Independent, MacPherson Struts, Coil Springs
Rear Suspension Type
  • Independent, Multi-link
Towing Capacity (w/ Brake)*
  • 3,500 lb.
Roof Rack Load Capacity
  • 165 lb.
Electronic Parking Brake (EPB)
  • Standard
Braking System
  • 4-Wheel Disc w/ Antilock Brake System (ABS)
Front Ventilated Brake Disc Diameter
  • 12.8 in.
Rear Solid Brake Disc Diameter
  • 12.8 in.
$39,490 Starting MSRP*
Highlighted Features:
  • 8-Passenger Seating
  • 2nd-Row Slide-Flex Seating
  • 8-Way Power Driver's Seat
  • Heated Front Seats*

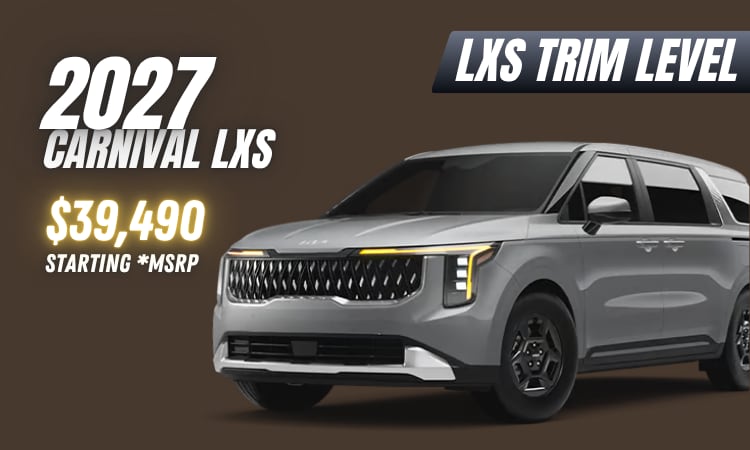

2027 Kia Carnival LXS Trim Level

CARNIVAL LXS EXTERIOR COLORS:
  • Panthera Metal
  • Ceramic Silver ($495)
  • Snow White Pearl ($495)
  • Deep Chroma Blue
CARNIVAL LXS INTERIOR COLORS:
  • Off-Black & Taupe Two-Tone SynTex Seat Trim
EPA MPG Estimates (City/Highway/Combined)*
  • 18/16/21
  • 12.3-inch Touchscreen Display w/ Navigation*
  • 4.2-inch Instrument Display*
  • Over-the-Air System Updates (OTA)*
  • 6-Speaker Audio System
  • Wireless Android Autoâ„¢*
  • Wireless Apple CarPlay®*
  • SiriusXM® Satellite Radio *
  • Remote Start* (available)
  • Kia Connect*
  • Pre-Cooling & Heating through Kia Access App* (available)
  • USB Data Port, Front Console
  • Front USB-C Charging Ports: 2
  • 2nd-row USB-C Charging Ports: 2
  • 3rd-row USB-C Charging Ports: 2
  • 12V Power Ports, Floor Console and Rear Cargo : 2
  • Wi-Fi Hotspot*
  • Schedule Maintenance Reminder through Kia Access App* (available)
  • Bluetooth® Wireless Technology w/ Multi-Device Connectivity*
  • Smart Key
  • Push Button Start
  • Power Windows w/ Driver One-Touch Auto-Up/Down
  • Variable Intermittent Windshield Wipers
  • Rear Windshield Wiper, Hidden
  • Day/Night Rearview Mirror
  • Heated, Power-Adjustable Side View Mirrors w/ LED Turn Signals
  • Voice Recognition*
  • 8-Way Power Driver's Seat w/ 4-Way Power Lumbar Adjustment
  • 4-Way Manual Passenger's Seat
  • Heated Front Seats*
  • Sliding & Removable 2nd-row Seats
  • 2nd-row Slide-Flex Seating
  • 60/40 Split-Folding 3rd-row Seats*
  • 13 Cup & Bottle Holders
  • Solar Control Glass Front Windshield
  • Sound-Absorbing Windshield Glass
  • Privacy Glass
  • SynTex Seat Trim
  • Leather-Wrapped Gear Shift Knob
  • Leather-Wrapped Steering Wheel
  • Interior Accent Trim, Metal Paint Finish
  • Interior Door Handles, Metal Paint Finish
  • Interior Lighting
  • Illuminated Sun Visor Vanity Mirrors
  • Hands-Free Power Sliding Rear Doors
  • 17-inch Alloy Wheels w/ Black Finish
  • Tire Size: 235/65R17
  • Standard
  • Compact Spare Tire
  • Auto Headlight Control
  • LED Multi Reflector Headlight
  • Taillights
  • LED Daytime Running Lights (DRL)
  • High Beam Assist*
  • Front Grille, Silver Paint
  • Front Bumper Trim, Silver Finish
  • Window Surrounds, Black
  • Side Sill Trim, Black Finish
  • C-Pillar Trim, Silver Finish
  • Liftgate Trim, Silver Finish
  • Door Handles, Half Chrome Finish
  • Side View Mirrors, Body-Color
  • Rear Spoiler
  • Shark Fin Antenna
  • Blind-Spot Collision-Avoidance Assist (Blind-Spot Detection Technology)*
  • Forward Collision-Avoidance Assist (Auto Emergency Braking Technology) w/ Pedestrian, Cyclist, & Junction Turning Detection*
  • Rear Cross-Traffic Collision-Avoidance Assist*
  • Park Distance Warning - Rear (Rear Parking Sensors)*
  • Park Distance Warning - Front (Front Parking Sensors)*
  • Lane Departure Warning*
  • Lane Keeping Assist*
  • Lane Following Assist 2*
  • Navigation-Based Smart Cruise Control w/ Stop & Go *
  • Highway Driving Assist*
  • Intelligent Speed Limit Assist*
  • Driver Attention Warning w/ Leading Vehicle Departure Alert*
  • Hands-On Detection (HOD)
  • Rear Occupant Alert*
  • Safe Exit Assist*
Height: w/o Roof Rails
  • 68.5 in.
Width: w/o Side Mirrors
  • 78.5 in.
Width: w/ Side Mirrors
  • 89.2 in.
Length
  • 203.0 in.
Wheelbase
  • 121.7 in.
Track: Front/Rear - 17-inch Wheels
  • 68.9/68.9 in.
Ground Clearance
  • 6.8 in.
Approach Angle
  • 15.4°
Departure Angle
  • 20.0°
Headroom: w/o Dual Sunroof 1st / 2nd-row / 3rd-row
  • 40.9/39.5/38.6 in.
Shoulder Room: 1st / 2nd-row / 3rd-row
  • 64.2/63.2/59.5 in.
Hip Room: 1st / 2nd-row / 3rd-row
  • 59.8/66.4/50.4 in.
Legroom: 1st / 2nd-row / 3rd-row
  • 41.1/40.5/35.6 in.
Cargo Volume (SAE): Minimum/Maximum
  • 40.2/145.1 cu. ft.
Curb Weight: Front-Wheel Drive (FWD) 8-Passenger minimum/maximum
  • 4,630 lb. / 4,630 lb.
Gross Weight
  • 6,283 lb.
Engine Type
  • 3.5 Liter V6
Displacement
  • 3,470 cc
Valve Train
  • Double Overhead Camshafts (DOHC), 4 Valves per cylinder
Compression Ratio
  • 12.3:1
Fuel Delivery System
  • Gasoline Direct Injection (GDI) and Multi-Port Injection (MPI)
Horsepower
  • 287 hp @ 6,400 rpm
Torque
  • 260 lb.-ft. @ 5,000 rpm

  • 8-Speed Auto Transmission
  • Eco Drive Mode

Fuel Requirement
  • Regular Unleaded, 87 Octane or higher
Fuel Tank Capacity
  • 19.0 gal.
Layout
  • Front Engine, Front-Wheel Drive (FWD)
Body Construction
  • Steel Unibody, Iso-Structure
Steering Type
  • Electric, Column-Mounted Motor Driven Power Steering (C-MDPS)
Front Suspension Type
  • Independent, MacPherson Struts, Coil Springs
Rear Suspension Type
  • Independent, Multi-link
Towing Capacity (w/ Brake)*
  • 3,500 lb.
Roof Rack Load Capacity
  • 165 lb.
Electronic Parking Brake (EPB)
  • Standard
Braking System
  • 4-Wheel Disc w/ Antilock Brake System (ABS)
Front Ventilated Brake Disc Diameter
  • 12.8 in.
Rear Solid Brake Disc Diameter
  • 12.8 in.

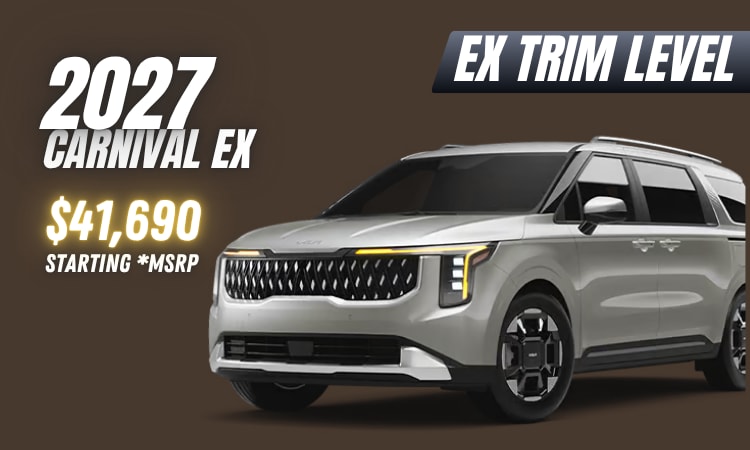

$41,690 Starting MSRP*
Highlighted Features:
  • 19-inch Wheels
  • Smart Power Liftgate
  • Passenger View Camera
  • Wireless Phone Charger*

2027 Kia Carnival EX Trim Level

CARNIVAL EX EXTERIOR COLORS:
  • Panthera Metal
  • Ceramic Silver ($495)
  • Snow White Pearl ($495)
  • Deep Chroma Blue
  • Ivory Silver
  • Iceberg Green
CARNIVAL EX INTERIOR COLORS:
  • Off-Black & Taupe Two-Tone SynTex Seat Trim
  • Off-Black SynTex Seat Trim
EPA MPG Estimates (City/Highway/Combined)*
  • 18/16/21
  • 12.3-inch Touchscreen Display w/ Navigation*
  • 4.2-inch Instrument Display*
  • Over-the-Air System Updates (OTA)*
  • 8-Speaker Audio System
  • Wireless Android Autoâ„¢*
  • Wireless Apple CarPlay®*
  • SiriusXM® Satellite Radio *
  • Remote Start* (available)
  • Kia Connect*
  • Wireless Phone Charger*
  • Pre-Cooling & Heating through Kia Access App* (available)
  • USB Data Port, Front Console
  • Front USB-C Charging Ports: 2
  • 2nd-row USB-C Charging Ports: 2
  • 3rd-row USB-C Charging Ports: 2
  • 12V Power Ports, Floor Console and Rear Cargo : 2
  • Wi-Fi Hotspot*
  • Schedule Maintenance Reminder through Kia Access App* (available)
  • Bluetooth® Wireless Technology w/ Multi-Device Connectivity*
  • Smart Key
  • Push Button Start
  • Power Windows w/ One-Touch Auto-Up/Down
  • Variable Intermittent Windshield Wipers
  • Rear Windshield Wiper, Hidden
  • Day/Night Rearview Mirror
  • Heated, Power-Adjustable Side View Mirrors w/ LED Turn Signals
  • Power-Folding Side View Mirrors
  • Passenger View - In-Cabin Camera
  • Passenger Talk - In Cabin Intercom
  • Quiet Mode
  • Voice Recognition*
  • Rear Seat Voice Recognition
  • 8-Way Power Driver's Seat w/ 4-Way Power Lumbar Adjustment
  • 8-Way Power Passenger's Seat
  • Heated Front Seats*
  • Driver's Memory Seat, Steering Wheel, & Outside Side View Mirrors
  • 2nd-row Captain's Chairs* (available)
  • Sliding & Removable 2nd-row Seats
  • 2nd-row Slide-Flex Seating
  • 60/40 Split-Folding 3rd-row Seats*
  • 13 Cup & Bottle Holders
  • 2nd & 3rd-row Integrated Window Sunshades
  • Solar Control Glass Front Windshield
  • Solar Control Glass Front Door Windows
  • Sound-Absorbing Windshield Glass
  • Sound-Absorbing Front Door Window Glass
  • Privacy Glass
  • SynTex Seat Trim
  • Leather-Wrapped Gear Shift Knob
  • Leather-Wrapped Steering Wheel
  • Interior Accent Trim, Hydro Graphic Wood Grain
  • Interior Accent Trim, Satin Metal Paint Finish (available)
  • Interior Door Handles, Half Chrome
  • Interior Lighting
  • Illuminated Sun Visor Vanity Mirrors
  • Roof Rails, Silver Finish*
  • Roof Rails, Dark Chrome* (available)
  • Smart Power Liftgate w/ Auto Close
  • Hands-Free Power Sliding Rear Doors
  • 19-inch Alloy Wheels w/ Gloss Black & Machined Finish
  • 19-inch Alloy Wheels w/ Gloss Black Finish (available)
  • Tire Size: 235/55R19
  • Compact Spare Tire
  • Auto Headlight Control
  • LED Multi Reflector Headlights
  • Taillights
  • LED Daytime Running Lights (DRL)
  • High Beam Assist*
  • Front Grille, Silver Paint

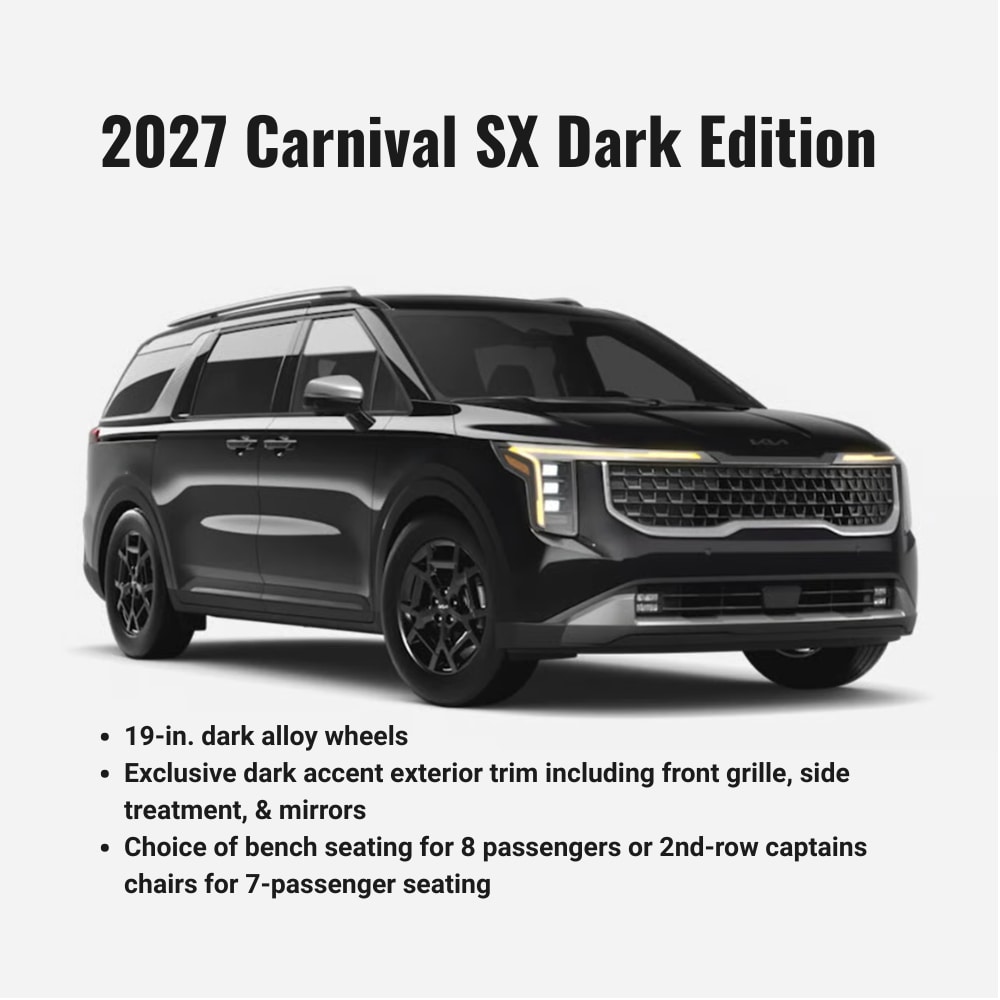

  • Front Grille, Dark Edition (available)
  • Front Bumper Trim, Silver Finish
  • Front and Rear Skid Plate, Dark Edition Finish (available)
  • Window Surrounds, Black
  • Side Sill Trim, Black Finish
  • Side Sill Trim, Black w/ Dark Edition Finish (available)
  • C-Pillar Trim, Silver Finish
  • C-Pillar Trim, Dark Edition Finish (available)
  • Liftgate Trim, Silver Finish
  • Liftgate Trim, Dark Edition Finish (available)
  • Door Handles, Half Chrome Finish
  • Kia & Carnival Badging, Black (available)
  • Side View Mirrors, Body-Color
  • Side View Mirrors, Dark Edition (available)
  • Rear Spoiler
  • Shark Fin Antenna
  • Blind-Spot Collision-Avoidance Assist (Blind-Spot Detection Technology)*
  • Forward Collision-Avoidance Assist (Auto Emergency Braking Technology) w/ Pedestrian, Cyclist, & Junction Turning Detection*
  • Rear Cross-Traffic Collision-Avoidance Assist*
  • Park Distance Warning - Rear (Rear Parking Sensors)*
  • Park Distance Warning - Front (Front Parking Sensors)*
  • Lane Departure Warning*
  • Lane Keeping Assist*
  • Lane Following Assist 2*
  • Navigation-Based Smart Cruise Control w/ Stop & Go *
  • Highway Driving Assist*
  • Intelligent Speed Limit Assist*
  • Driver Attention Warning w/ Leading Vehicle Departure Alert*
  • Hands-On Detection (HOD)
  • Rear Occupant Alert*
  • Safe Exit Assist*
Height: w/ Roof Rails
  • 69.9 in.
Width: w/o Side Mirrors
  • 78.5 in.
Width: w/ Side Mirrors
  • 89.2 in.
Length
  • 203.0 in.
Wheelbase
  • 121.7 in.
Track: Front/Rear - 19-inch Wheels
  • 68.5/68.5 in.
Ground Clearance
  • 6.8 in.
Approach Angle
  • 15.4°
Departure Angle
  • 20.0°
Headroom: w/o Dual Sunroof 1st / 2nd-row / 3rd-row
  • 40.9/39.5/38.6 in.
Shoulder Room: 1st / 2nd-row / 3rd-row
  • 64.2/63.2/59.5 in.
Hip Room: 1st / 2nd-row / 3rd-row
  • 59.8/66.4/50.4 in.
Legroom: 1st / 2nd-row / 3rd-row
  • 41.1/40.5/35.6 in.
Cargo Volume (SAE): Minimum/Maximum
  • 40.2/145.1 cu. ft.
Curb Weight: Front-Wheel Drive (FWD) 7-Passenger minimum/maximum
  • 4,678 lb. / 4,678 lb.
Curb Weight: Front-Wheel Drive (FWD) 8-Passenger minimum/maximum
  • 4,725 lb. / 4,725 lb.
Gross Weight
  • 6,283 lb.
Engine Type
  • 3.5 Liter V6
Displacement
  • 3,470 cc
Valve Train
  • Double Overhead Camshafts (DOHC), 4 Valves per cylinder
Compression Ratio
  • 12.3:1
Fuel Delivery System
  • Gasoline Direct Injection (GDI) and Multi-Port Injection (MPI)
Horsepower
  • 287 hp @ 6,400 rpm
Torque
  • 260 lb.-ft. @ 5,000 rpm
  • 8-Speed Auto Transmission
  • Eco Drive Mode
Fuel Requirement
  • Regular Unleaded, 87 Octane or higher
Fuel Tank Capacity
  • 19.0 gal.
Layout
  • Front Engine, Front-Wheel Drive (FWD)
Body Construction
  • Steel Unibody, Iso-Structure
Steering Type
  • Electric, Column-Mounted Motor Driven Power Steering (C-MDPS)
Front Suspension Type
  • Independent, MacPherson Struts, Coil Springs
Rear Suspension Type
  • Independent, Multi-link
Towing Capacity (w/ Brake)*
  • 3,500 lb.
Roof Rack Load Capacity
  • 165 lb.
Electronic Parking Brake (EPB)
  • Standard
Braking System
  • 4-Wheel Disc w/ Antilock Brake System (ABS)
Front Ventilated Brake Disc Diameter
  • 12.8 in.
Rear Solid Brake Disc Diameter
  • 12.8 in.
$46,590 Starting MSRP*
Highlighted Features:
  • 19-inch Black Wheels
  • Dual Sunroofs
  • Blind-Spot & 360 Surround-View Monitor*
  • Dual 12.3-inch Displays*

2027 Kia Carnival SX Trim Level

CARNIVAL SX EXTERIOR COLORS:
  • Ceramic Silver ($495)
  • Snow White Pearl ($495)
  • Ivory Silver
  • Iceberg Green
  • Aurora Black Pearl ($495)
  • Astra Blue ($495)
CARNIVAL SX INTERIOR COLORS:
  • Off-Black & Taupe Two-Tone SynTex Seat Trim
  • Off-Black SynTex Seat Trim
  • Deep Navy & Misty Gray SynTex Seat Trim
  • Off-Black & Tuscan Umber SynTex Seat Trim
EPA MPG Estimates (City/Highway/Combined)*
  • 18/16/21
  • 12.3-inch Touchscreen Display w/ Navigation*
  • 12.3-inch Curved Instrument Display*
  • Over-the-Air System Updates (OTA)*
  • 8-Speaker Audio System
  • Wireless Android Autoâ„¢*
  • Wireless Apple CarPlay®*
  • SiriusXM® Satellite Radio *
  • Remote Start* (available)
  • Kia Connect*
  • Wireless Phone Charger*
  • Pre-Cooling & Heating through Kia Access App* (available)
  • USB Data Port, Front Console
  • Front USB-C Charging Ports: 2
  • 2nd-row USB-C Charging Ports: 2
  • 3rd-row USB-C Charging Ports: 2
  • 115V Power Outlets, Floor Console and Rear Cargo : 2
  • Wi-Fi Hotspot*
  • Schedule Maintenance Reminder through Kia Access App* (available)
  • Bluetooth® Wireless Technology w/ Multi-Device Connectivity*
  • Smart Key
  • Push Button Start
  • Digital Key 2.0*
  • Power Windows w/ One-Touch Auto-Up/Down
  • Auto Rain-Sensing Windshield Wipers
  • Aero Wiper Blades
  • Rear Windshield Wiper, Hidden
  • Day/Night Rearview Mirror
  • Heated, Power-Adjustable Side View Mirrors w/ LED Turn Signals
  • Power-Folding Side View Mirrors
  • Passenger View - In-Cabin Camera
  • Passenger Talk - In Cabin Intercom
  • Quiet Mode
  • Voice Recognition*
  • Rear Seat Voice Recognition
  • 8-Way Power Driver's Seat w/ 4-Way Power Lumbar Adjustment
  • 8-Way Power Passenger's Seat
  • Heated Front Seats*
  • Ventilated Front Seats
  • Driver's Memory Seat, Steering Wheel, & Outside
  • 2nd-row Captain's Chairs* (available)
  • Sliding & Removable 2nd-row Seats
  • 2nd-row Slide-Flex Seating
  • 60/40 Split-Folding 3rd-row Seats*
  • 13 Cup & Bottle Holders
  • 2nd & 3rd-row Integrated Window Sunshades
  • Solar Control Glass Front Windshield
  • Solar Control Glass Front Door Windows
  • Sound-Absorbing Windshield Glass
  • Sound-Absorbing Front Door Window Glass
  • Privacy Glass
  • Dual Sunroofs
  • SynTex Seat Trim
  • Leather-Wrapped Gear Shift Knob
  • Leather-Wrapped Steering Wheel
  • Interior Accent Trim, Hydro Graphic Wood Grain
  • Interior Accent Trim, Satin Metal Paint Finish (available)
  • Interior Door Handles, Half Chrome
  • LED Interior Lighting
  • Illuminated Sun Visor Vanity Mirrors
  • Roof Rails, Silver Finish*
  • Roof Rails, Dark Chrome* (available)
  • Smart Power Liftgate w/ Auto Close
  • Hands-Free Power Sliding Rear Doors
  • 19-inch Alloy Wheels w/ Black Finish
  • 19-inch Alloy Wheels w/ Gloss Black Finish (available)
  • Tire Size: 235/55R19
  • Compact Spare Tire
  • Auto Headlight Control
  • LED Multi Reflector Headlights
  • LED Fog Lights
  • Taillights
  • LED Daytime Running Lights (DRL)
  • High Beam Assist*
  • Front Grille, Dark Chrome
  • Front Grille, Dark Edition (available)
  • Front Bumper Trim, Matte Chrome Finish
  • Front and Rear Skid Plate, Matte Chrome Finish
  • Front and Rear Skid Plate, Dark Edition Finish (available)
  • Window Surrounds, Black
  • Side Sill Trim, Black w/ Matte Chrome Finish
  • Side Sill Trim, Black w/ Dark Edition Finish (available)
  • C-Pillar Trim, Matte Chrome Finish
  • C-Pillar Trim, Dark Edition Finish (available)
  • Liftgate Trim, Matte Chrome Finish
  • Liftgate Trim, Dark Edition Finish (available)
  • Door Handles, Half Chrome Finish
  • Kia & Carnival Badging, Black (available)
  • Side View Mirrors, Body-Color
  • Side View Mirrors, Dark Edition (available)
  • Rear Spoiler
  • Shark Fin Antenna
  • Blind-Spot Collision-Avoidance Assist (Blind-Spot Detection Technology)*
  • Blind-Spot View Monitor (Blind-Spot & 360° Surround View Monitor)*
  • Forward Collision-Avoidance Assist (Enhanced Auto Emergency Braking Technology) w/ Pedestrian, Cyclist, Junction Turning, Junction Crossing, Direct Oncoming, Lane Change Oncoming, Lane Change Side, & Evasive Steering Assist Detection*
  • Rear Cross-Traffic Collision-Avoidance Assist*
  • Park Distance Warning - Rear (Rear Parking Sensors)*
  • Park Distance Warning - Front (Front Parking Sensors)*
  • Park Distance Warning - Side (Side Parking Sensors)*
  • Parking Collision-Avoidance Assist-Reverse (Rear Parking Collision-Avoidance Assist)*
  • 360° Surround View Monitor (Blind-Spot & 360° Surround View Monitor)*
  • Lane Departure Warning*
  • Lane Keeping Assist*
  • Lane Following Assist 2*
  • Navigation-Based Smart Cruise Control w/ Stop & Go - Ramp*
  • Smart Cruise Control w/ Stop & Go & Machine Learning*
  • Highway Driving Assist 2*
  • Intelligent Speed Limit Assist*
  • Driver Attention Warning w/ Leading Vehicle Departure Alert*
  • Hands-On Detection (HOD)
  • Rear Occupant Alert*
  • Safe Exit Assist*
Height: w/ Roof Rails
  • 69.9 in.
Width: w/o Side Mirrors
  • 78.5 in.
Width: w/ Side Mirrors
  • 89.2 in.
Length
  • 203.0 in.
Wheelbase
  • 121.7 in.
Track: Front/Rear - 19-inch Wheels
  • 68.5/68.5 in.
Ground Clearance
  • 6.8 in.
Approach Angle
  • 15.4°
Departure Angle
  • 20.0°
Headroom: Dual Sunroof 1st / 2nd-row / 3rd-row
  • 39.7/37.6/36.5 in.
Shoulder Room: 1st / 2nd-row / 3rd-row
  • 64.2/63.2/59.5 in.
Hip Room: 1st / 2nd-row / 3rd-row
  • 59.8/66.4/50.4 in.
Legroom: 1st / 2nd-row / 3rd-row
  • 41.1/40.5/35.6 in.
Cargo Volume (SAE): Minimum/Maximum
  • 40.2/145.1 cu. ft.
Curb Weight: Front-Wheel Drive (FWD) 7-Passenger minimum/maximum
  • 4,762 lb. / 4,762 lb.
Curb Weight: Front-Wheel Drive (FWD) 8-Passenger minimum/maximum
  • 4,810 lb. / 4,824 lb.
Gross Weight
  • 6,283 lb.
Engine Type
  • 3.5 Liter V6
Displacement
  • 3,470 cc
Valve Train
  • Double Overhead Camshafts (DOHC), 4 Valves per cylinder
Compression Ratio
  • 12.3:1
Fuel Delivery System
  • Gasoline Direct Injection (GDI) and Multi-Port Injection (MPI)
Horsepower
  • 287 hp @ 6,400 rpm
Torque
  • 260 lb.-ft. @ 5,000 rpm
  • 8-Speed Auto Transmission
  • Eco Drive Mode
Fuel Requirement
  • Regular Unleaded, 87 Octane or higher
Fuel Tank Capacity
  • 19.0 gal.
Layout
  • Front Engine, Front-Wheel Drive (FWD)
Body Construction
  • Steel Unibody, Iso-Structure
Steering Type
  • Electric, Column-Mounted Motor Driven Power Steering (C-MDPS)
Front Suspension Type
  • Independent, MacPherson Struts, Coil Springs
Rear Suspension Type
  • Independent, Multi-link
Towing Capacity (w/ Brake)*
  • 3,500 lb.
Roof Rack Load Capacity
  • 165 lb.
Electronic Parking Brake (EPB)
  • Standard
Braking System
  • 4-Wheel Disc w/ Antilock Brake System (ABS)
Front Ventilated Brake Disc Diameter
  • 12.8 in.
Rear Solid Brake Disc Diameter
  • 12.8 in.
$51,590 Starting MSRP*
Highlighted Features:
  • Bose Premium Audio System
  • Dark Edition Styling w/ Leather Seat Trim
  • Heads-up Display
  • Digital Rearview Mirror*

2027 Carnival SX Prestige Trim Level

CARNIVAL SX PRESTIGE EXTERIOR COLORS:
  • Ceramic Silver ($495)
  • Snow White Pearl ($495)
  • Ivory Silver
  • Iceberg Green
  • Aurora Black Pearl ($495)
  • Astra Blue ($495)
CARNIVAL SX PRESTIGE INTERIOR COLORS:
  • Off-Black Leather Seat Trim
  • Deep Navy & Misty Gray Leather Seat Trim
  • Off-Black & Tuscan Umber Leather Seat Trim
EPA MPG Estimates (City/Highway/Combined)*
  • 18/16/21
  • 12.3-inch Touchscreen Display w/ Navigation*
  • 12.3-inch Curved Instrument Display*
  • 11-inch Head-Up Display*
  • Over-the-Air System Updates (OTA)*
  • Bose® Premium Audio System, 12 Speakers*
  • Wireless Android Autoâ„¢*
  • Wireless Apple CarPlay®*
  • SiriusXM® Satellite Radio *
  • Remote Start* (available)
  • Kia Connect*
  • Wireless Phone Charger*
  • Pre-Cooling & Heating through Kia Access App* (available)
  • USB Data Port, Front Console
  • Front USB-C Charging Ports: 2
  • 2nd-row USB-C Charging Ports: 2
  • 3rd-row USB-C Charging Ports: 2
  • 115V Power Outlets, Floor Console and Rear Cargo : 2
  • Wi-Fi Hotspot*
  • Schedule Maintenance Reminder through Kia Access App* (available)
  • Bluetooth® Wireless Technology w/ Multi-Device Connectivity*
  • Smart Key
  • Push Button Start
  • Digital Key 2.0*
  • Power Windows w/ One-Touch Auto-Up/Down
  • Auto Rain-Sensing Windshield Wipers
  • Aero Wiper Blades
  • Rear Windshield Wiper, Hidden
  • Full Display Mirror® w/ HomeLink® (Digital Rearview Mirror)*
  • Heated, Power-Adjustable Side View Mirrors w/ LED Turn Signals
  • Power-Folding Side View Mirrors
  • Passenger View - In-Cabin Camera
  • Passenger Talk - In Cabin Intercom
  • Quiet Mode
  • Voice Recognition*
  • Rear Seat Voice Recognition
  • 8-Way Power Driver's Seat w/ 4-Way Power Lumbar Adjustment
  • 8-Way Power Passenger's Seat
  • Heated Front Seats*
  • Ventilated Front Seats
  • Heated Steering Wheel*
  • Driver's Memory Seat, Steering Wheel, & Outside
  • 2nd-row Heated & Ventilated Power Lounge Seats w/ Comfort Headrest & Power Leg Extension* (available)
  • Sliding & Removable 2nd-row Seats
  • 2nd-row Slide-Flex Seating
  • 60/40 Split-Folding 3rd-row Seats*
  • 13 Cup & Bottle Holders
  • 2nd & 3rd-row Integrated Window Sunshades
  • Solar Control Glass Front Windshield
  • Solar Control Glass Front Door Windows
  • Sound-Absorbing Windshield Glass
  • Sound-Absorbing Front Door Window Glass
  • Sound-Absorbing 2nd-row Door Window Glass (available)
  • Privacy Glass
  • Dual Sunroofs
  • Leather Seat Trim
  • Leather-Wrapped Gear Shift Knob
  • Leather-Wrapped Steering Wheel
  • Interior Accent Trim, Satin Metal Paint Finish
  • Interior Accent Trim, High Gloss Black (available)
  • Interior Door Handles, Half Chrome
  • LED Interior Lighting
  • Ambient Lighting (available)
  • Illuminated Sun Visor Vanity Mirrors
  • Roof Rails, Dark Chrome*
  • Smart Power Liftgate w/ Auto Close
  • Hands-Free Power Sliding Rear Doors
  • 19-inch Alloy Wheels w/ Gloss Black Finish
  • Tire Size: 235/55R19
  • Compact Spare Tire
  • Auto Headlight Control
  • LED Projector Headlights
  • LED Fog Lights
  • LED Taillights
  • LED Daytime Running Lights (DRL)
  • High Beam Assist*
  • Front Grille, Dark Edition
  • Front Bumper Trim, Matte Chrome Finish
  • Front and Rear Skid Plate, Dark Edition Finish
  • Window Surrounds, Black
  • Side Sill Trim, Black w/ Dark Edition Finish
  • C-Pillar Trim, Dark Edition Finish
  • Liftgate Trim, Dark Edition Finish
  • Door Handles, Half Chrome Finish
  • Kia & Carnival Badging, Black
  • Side View Mirrors, Body-Color
  • Side View Mirrors, Dark Edition
  • Rear Spoiler
  • Shark Fin Antenna
  • Blind-Spot Collision-Avoidance Assist (Blind-Spot Detection Technology)*
  • Blind-Spot View Monitor (Blind-Spot & 360° Surround View Monitor)*
  • Forward Collision-Avoidance Assist (Enhanced Auto Emergency Braking Technology) w/ Pedestrian, Cyclist, Junction Turning, Junction Crossing, Direct Oncoming, Lane Change Oncoming, Lane Change Side, & Evasive Steering Assist Detection*
  • Rear Cross-Traffic Collision-Avoidance Assist*
  • Park Distance Warning - Rear (Rear Parking Sensors)*
  • Park Distance Warning - Front (Front Parking Sensors)*
  • Park Distance Warning - Side (Side Parking Sensors)*
  • Parking Collision-Avoidance Assist-Reverse (Rear Parking Collision-Avoidance Assist)*
  • 360° Surround View Monitor (Blind-Spot & 360° Surround View Monitor)*
  • Lane Departure Warning*
  • Lane Keeping Assist*
  • Lane Following Assist 2*
  • Navigation-Based Smart Cruise Control w/ Stop & Go - Ramp*
  • Smart Cruise Control w/ Stop & Go & Machine Learning*
  • Highway Driving Assist 2*
  • Intelligent Speed Limit Assist*
  • Driver Attention Warning w/ Leading Vehicle Departure Alert*
  • Hands-On Detection (HOD)
  • Rear Occupant Alert*
  • Safe Exit Assist*
Height: w/ Roof Rails
  • 69.9 in.
Width: w/o Side Mirrors
  • 78.5 in.
Width: w/ Side Mirrors
  • 89.2 in.
Length
  • 203.0 in.
Wheelbase
  • 121.7 in.
Track: Front/Rear - 19-inch Wheels
  • 68.5/68.5 in.
Ground Clearance
  • 6.8 in.
Approach Angle
  • 15.4°
Departure Angle
  • 20.0°
Headroom: Dual Sunroof 1st / 2nd-row / 3rd-row
  • 39.7/37.6/36.5 in.
Shoulder Room: 1st / 2nd-row / 3rd-row
  • 64.2/63.2/59.5 in.
Hip Room: 1st / 2nd-row / 3rd-row
  • 59.8/66.4/50.4 in.
Legroom: 1st / 2nd-row / 3rd-row
  • 41.1/40.5/35.6 in.
Cargo Volume (SAE): Minimum/Maximum
  • 40.2/145.1 cu. ft.
Curb Weight: Front-Wheel Drive (FWD) 7-Passenger minimum/maximum
  • 4,771 lb. / 4,771 lb.
Curb Weight: Front-Wheel Drive (FWD) 8-Passenger minimum/maximum
  • 4,720 lb. / 4,733 lb.
Gross Weight
  • 6,283 lb.
Engine Type
  • 3.5 Liter V6
Displacement
  • 3,470 cc
Valve Train
  • Double Overhead Camshafts (DOHC), 4 Valves per cylinder
Compression Ratio
  • 12.3:1
Fuel Delivery System
  • Gasoline Direct Injection (GDI) and Multi-Port Injection (MPI)
Horsepower
  • 287 hp @ 6,400 rpm
Torque
  • 260 lb.-ft. @ 5,000 rpm
  • 8-Speed Auto Transmission
  • Eco Drive Mode
Fuel Requirement
  • Regular Unleaded, 87 Octane or higher
Fuel Tank Capacity
  • 19.0 gal.
Layout
  • Front Engine, Front-Wheel Drive (FWD)
Body Construction
  • Steel Unibody, Iso-Structure
Steering Type
  • Electric, Column-Mounted Motor Driven Power Steering (C-MDPS)
Front Suspension Type
  • Independent, MacPherson Struts, Coil Springs
Rear Suspension Type
  • Independent, Multi-link
Towing Capacity (w/ Brake)*
  • 3,500 lb.
Roof Rack Load Capacity
  • 165 lb.
Electronic Parking Brake (EPB)
  • Standard
Braking System
  • 4-Wheel Disc w/ Antilock Brake System (ABS)
Front Ventilated Brake Disc Diameter
  • 12.8 in.
Rear Solid Brake Disc Diameter
  • 12.8 in.

Related Links

Related Links

Related Links

Let Us Help with Your New 2027 Carnival..

* Indicates a required field

2027 Kia Carnival Dimensions & Technical Specs.
Discover the new Kia Carnival dimensions below, including the 2027 Kia Carnival Length, Height, Width,
Wheelbase, Gross Weight and more..
2027 Kia Carnival Colors
Check Out the 8 Available 2027 Kia Carnival Exterior Color Options. Or "Click" the Image Below
to View Exterior / Interior Color Combinations by specific trim level package.
  1. Midtown Kia of Tulsa

    4747 S. Yale Ave
    Tulsa, OK 74135

    • Sales: 918-622-3160
Loading Map...

Give us a Shout!

  • Contact our Sales Department at: 918-622-3160
  • Monday9:00AM-8:00PM
  • Tuesday9:00AM - 8:00PM
  • Wednesday9:00AM - 8:00PM
  • Thursday9:00AM - 8:00PM
  • Friday9:00AM - 8:00PM
  • Saturday9:00AM - 7:00PM
  • SundayClosed
